The hardest working speaker in any home theater and yet the least appreciated. Natural, True vocals are never easy while maintaining super low distortion and extreme dynamics that movies demand is what sets the R-series apart. The same DPC control with clarity that make you forget you have speakers in your room at all and just enjoy yourself.
IT’S ALL IN THE DETAILS

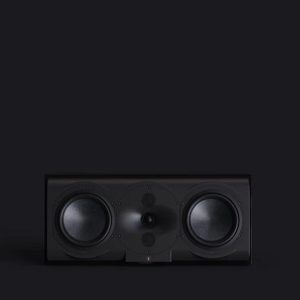

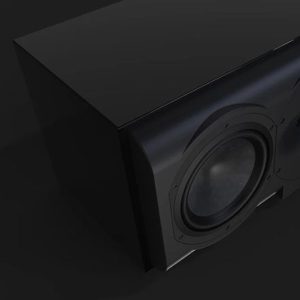

Designed to be mounted on optional stand, or mounted to a wall with our tilt swivel bracket. Sharing “trickle-down” technology from our flagship S-Series, the DPC-Array here based on three 26mm domes, guarantees excellent directivity control and timbre matching with all R-Series speakers. The Silk diaphragms developed ground up, chosen specifically their smooth, effortless representation of midrange and treble. The 165mm woofers are made from our proprietary HPF pulp, two years in development, bringing new technology to one of the oldest materials used in loudspeaker design.
| Enclosure alignment | 3-way acoustic suspension |
| Driver compliment | DPC Array: 26mm(3) Silk dome Woofers: 165mm(2) HPF diaphragms |
| Sensitivity | 88.6dB/2.83v/1.0m |
| Impedance | 4Ω nominal/3.4Ω min |
| Response Linearity | 80 – 20kHz +/-1.5dB window |
| Frequency Response (-10dB) | 49-32kHz |
| Typical in room bass extension | 44Hz |
| Dimensions (HxWxD) | 240x550x270mm 9.5×21.6×10.6″ |
| Weight | 15.0 kg (33.0 lbs.) |
| Recommended Amplifier Power | 100-250W RMS |
| SPL capability (100-20kHz) | 112.6dB peak <3%-2nd, 3rd Harmonics |
| Certification | THX Dominus THX Ultra |
| Available finishes | Piano black |
