Features
Our new Q Install in-wall series offers an exhilarating range of speakers designed for home theatre applications demanding exceptional performance from loudspeakers that meet the needs of clients requiring stylish low profile aesthetics.

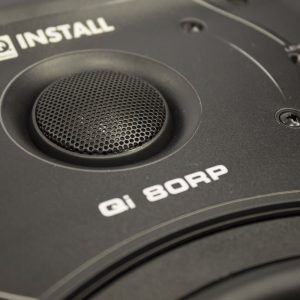

Our 8” in-wall speaker features Q Install’s superior Nano Particle mass damped polypropylene low frequency drive units with high powered coil and magnet assemblies for low distortion and high transient power capability. Full range speakers combine swivel capable silk done mesh protected tweeters for fine system tuning together with additional high frequency level adjustment. Featuring low profile magnetic grilles for ease of installation, with optimized whole geometries for their frequency range.

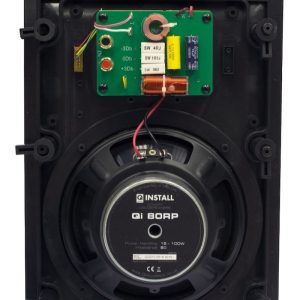

High order crossovers are used to ensure a smooth frequency transition on two and 3 way units, particular care has been taken to ensure that speech remains clear at all times via attention to the mid-range frequency response and reduction of all sources of colouration. Installation is made particularly flexible by ensuring that all units require the minimum of installation depth.
Easy To Install

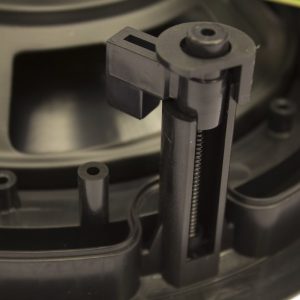

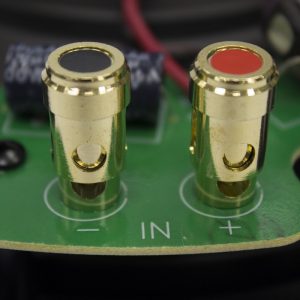

A cut guide template is supplied inside the box, to mark out the hole you need to make in your wall. The speakers attach to your ceiling via four clamps you screw in from the front, while the speaker terminals have push open connectors that you can manage with one hand. Our speaker grilles easily attach via magnets to the speakers.
- Tweeter / Tweeter Diameter: Swivel / 1″ (25mm)
- Woofer Diameter: 8.0″
- Power Handling Program: 15 – 100W
- Impedance Nominal ohms: 8
- Sensitivity dB spl (2.83V, 1m): 88 (switchable HF)
- Response Low Frequency -3 dB: 60 Hz
- Maximum Rear Depth: 95 mm
- Size: Round / Square Grilles: 365 mm x 263 mm
- Cutout Nominal: 335 mm x 233 mm
What’s In The Box
- 1 x Qi80RP Performance Install Speaker
- 1 x Rectangular Magnetic Grille
- 1 x Cutting Template
- 1 x Quick Start Installation Instructions
